Syvecs S7 Plus Wire In Standalone ECU
PLEASE CONTACT US FOR A LEAD TIME
This product will require professional fitting, BHP can do this please contact us for a price, the cost can be included in financing options.
The S7Plus is our newest management system offering 22 x Inputs, 16 x Fuel Outputs, 8 x H-Bridge Outputs 6 x Ignition Outputs, 2 x Lambda Input, 2 x Knock Input, 2 x EGT Input and Main Relay Control. All software features are enabled from factory except for Direct Injection control and Paddle-Shift control which is an optional upgrade
The S7-Plus ECU offers an extremely high level of precise engine management control. The triple processor unit uses a high speed RISC processor for code execution and an additional large FPGA for high speed engine position tracking, allowing the scheduling of code to be independent of signal patterns, increasing flexibility, efficiency and accuracy under transient conditions. This powerful combination also allows advanced control algorithms but yet easy to map for the end user still using our SCal software and S7 Firmware.
Designed to cater for PnP kits where clients also need the programmable CAN Bus and Drive-By-Wire support offered by the S7-Plus.
The third processor present is available for in the future users to write their own code in C for Full Vehicle Integration via Canbus and Build some custom strategies to handle some of the unique requirements which are now found in OEM Applications. Currently only Syvecs staff can do this but we are working on offering this out to all our dealers very soon!

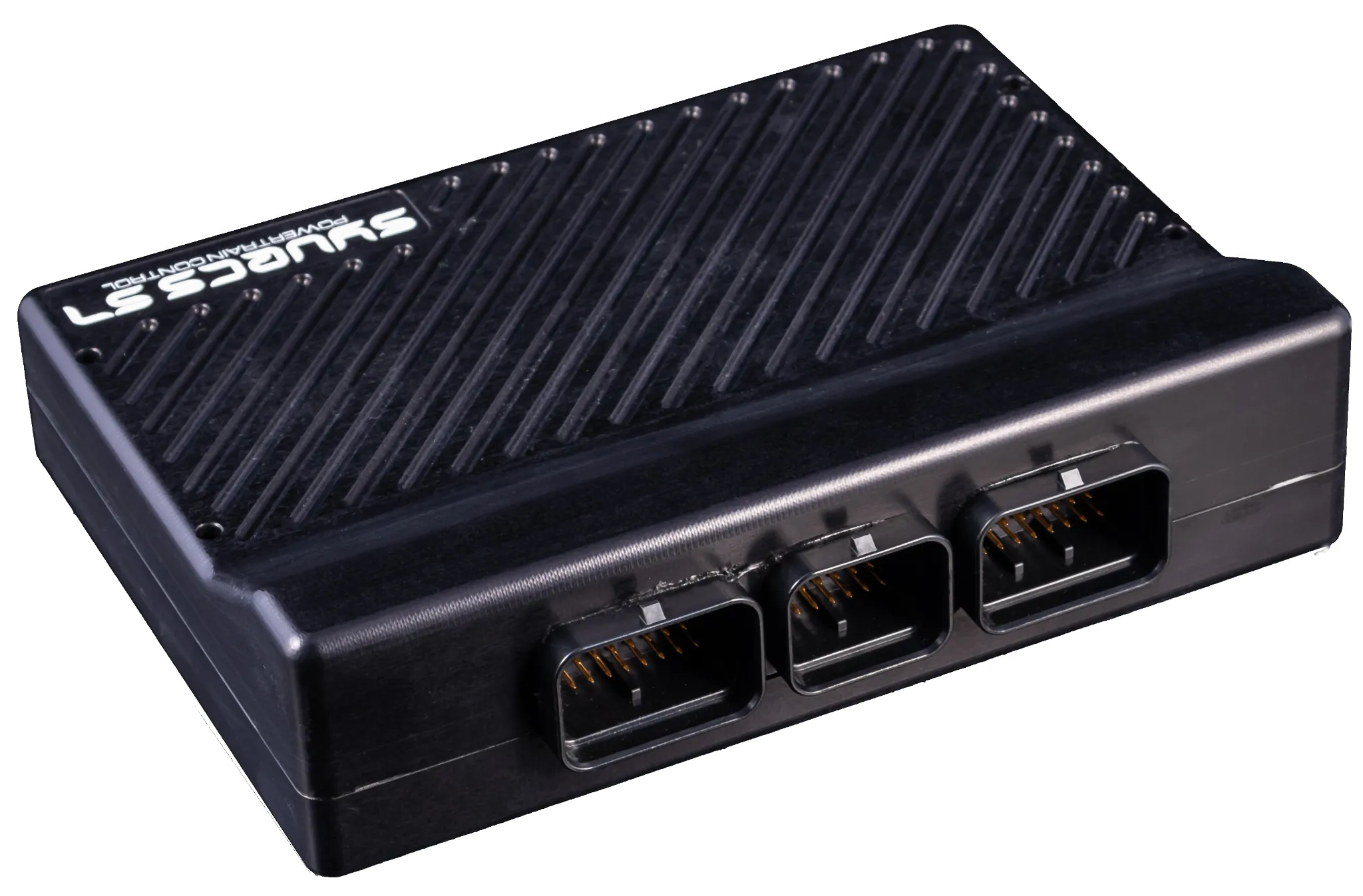

Cased In A Sealed Aluminium Billet Unit With 3 x Waterproof Connectors Offering 94pins
Inputs
2 x NTK / LSU4.9 / Denso AF Lambda Inputs
2 x K-Type Thermocouple Circuit
Outputs
30 x High/Low Side Driver Outputs:
8 x Half Bridge Outputs (Max 10 Amps)
Main Relay Control Circuit with Wake on Can Support
Comms
3 x Can 2.0B
1 x Rs232 Output
1 x Kline Output
100 Mhz Full Duplex Ethernet For Connection To PC For Programming And Data Download
Up to 64MB Internal Logging Memory (Standard is 32mb) aswell as Onboard Laptop Logging
6 to 20v input voltage range with reverse polarity protection
3 x regulated 5V sensor supply outputs with protection
Operating Temperature -55 to 125 C
Dimensions : 185 X 145 X 55 mm
