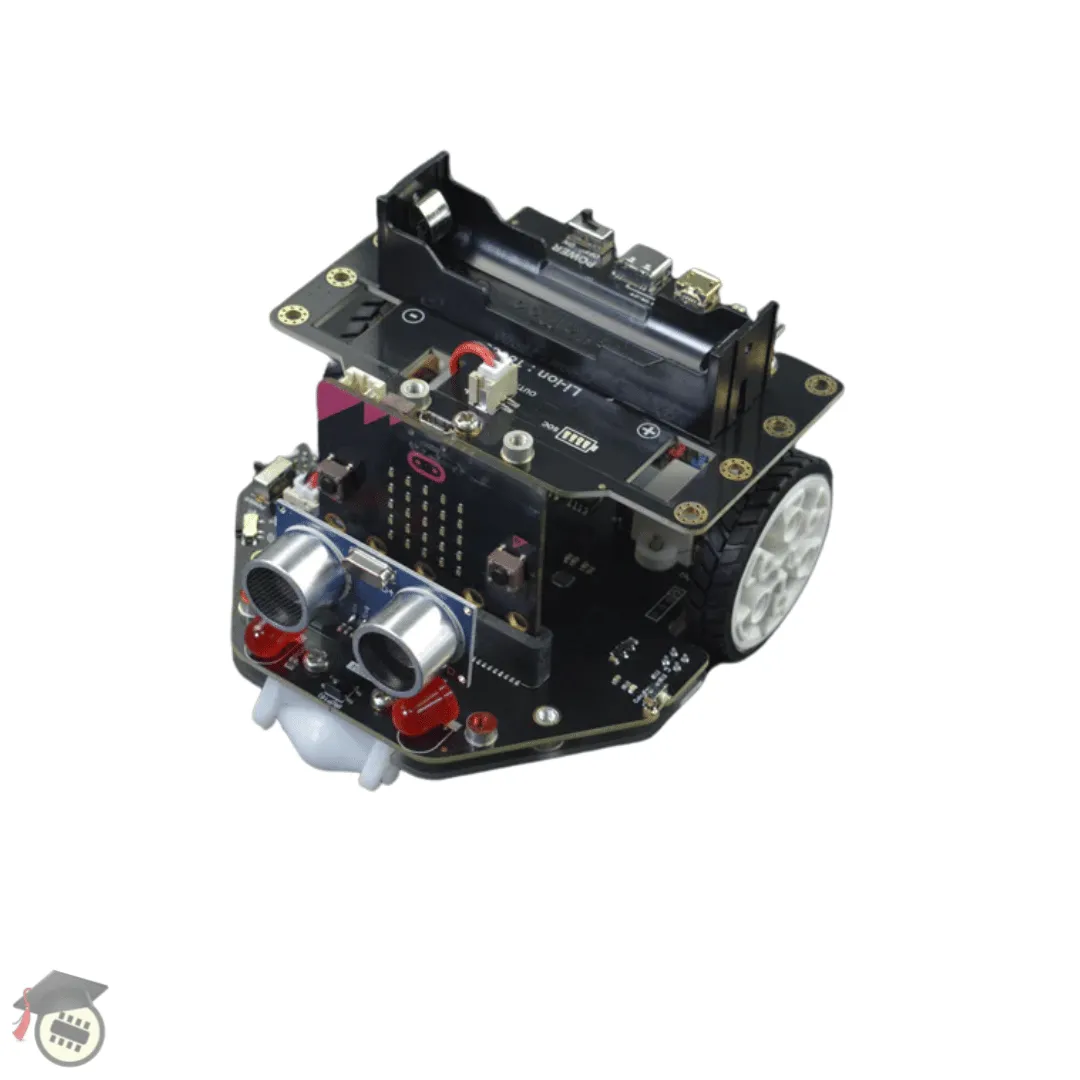

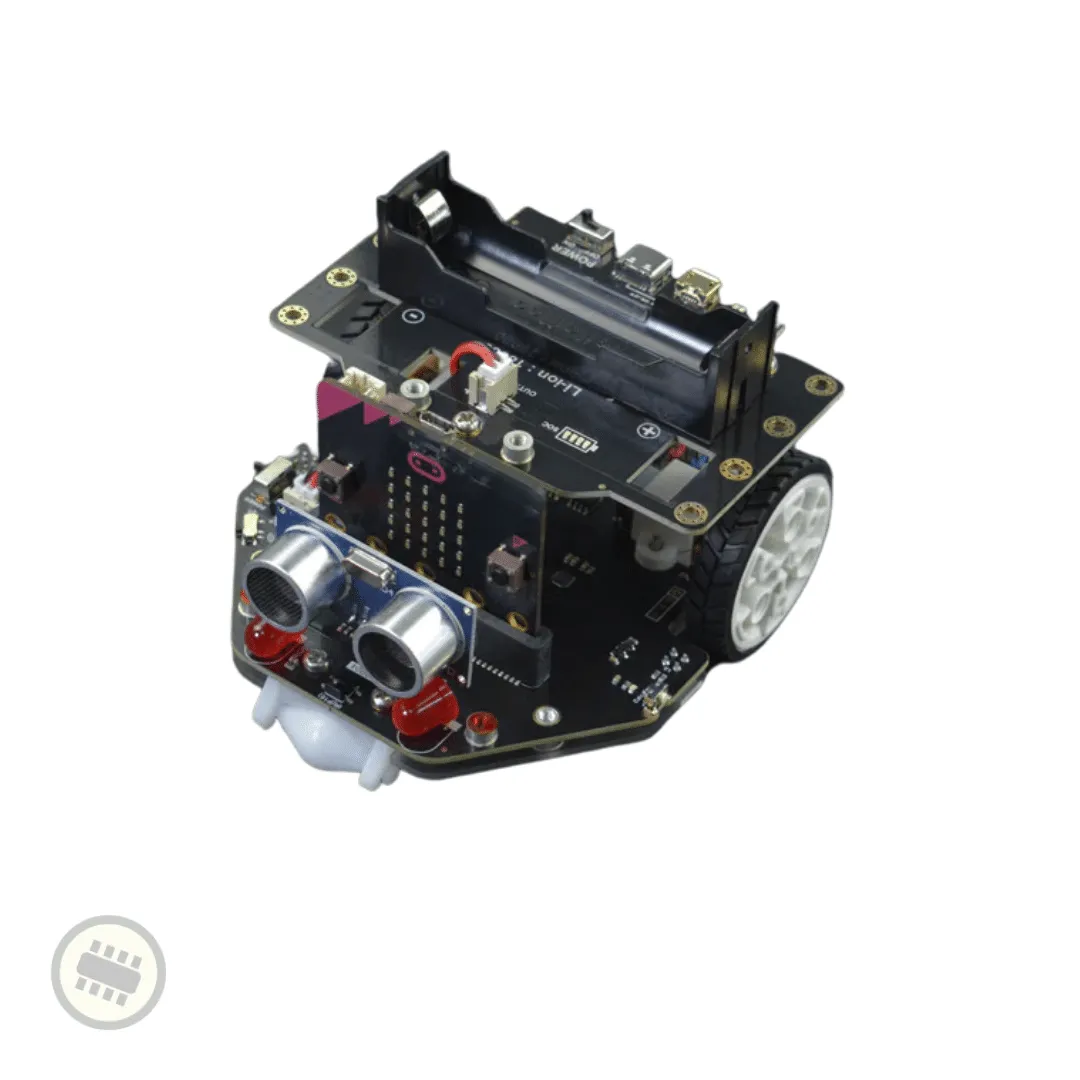

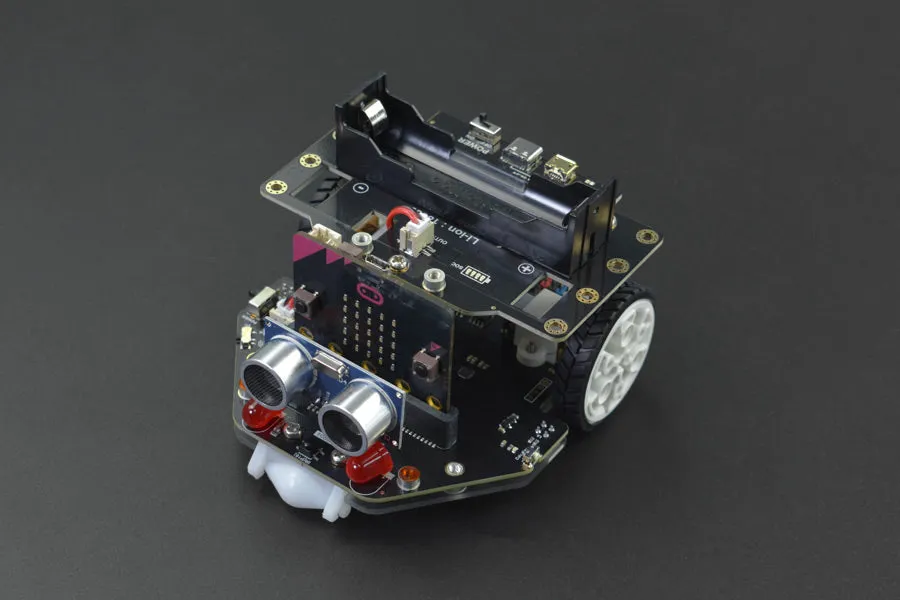

Name: micro:Maqueen Plus V2 (18650) - an Advanced STEM Education Robot for micro:bit
SKU: 513019

Note: and batteries are not included.

What’s new in Maqueen Plus V2?

1. Two versions to choose from: and .

2. New plastic box with a deeper base, enough room for the assembled car

3. Frosted acrylic protective plate at the bottom, more durable and reliable

4. The number of Line-tracking sensors has changed from 6 to 5, more convenient to program and optimize line-tracking codes

5. Employs the motors whose parameters are the same as previous Maqueen, running steadily and smoothly

6. Changes ultrasonic sensor to SR04, easier to install

7. Add 4 RGB ambient lights at the base, RGB car lights have been changed to LEDs

8. Delete the less usable magnetic encoder

Maqueen Plus V2 is the latest version of the STEAM educational robot Maqueen Plus. Optimized with more expansion ports, larger capacity power supply, and larger body, it is fully compatible with more peripheral components like HuskyLens AI camera, Maqueen Mechanic Kits, which makes it an accessible STEAM robot teaching tool for primary and secondary students. Maqueen Plus V2 is not only suitable for classroom teaching, but also can be used for after-school extended exercises and robot competitions.

Besides all the functions of Maqueen Lite, it offers richer and more flexible functions and stronger performance. Whether you have ever used Maqueen Series products or not, you’ll find it very easy to get started.

Features:

No complex assembly, get started in minutes

More IO expansion ports: 3.3V IO x7, 5V IO x3, I2C x3

5 line-tracking sensors, reliable and flexible

Larger body, more flexible expansion methods

Two versions to choose from: AA battery and 18650 battery
AA battery version supports 1.2V Ni MH battery or 1.5V alkaline battery, while 18650 battery version supports 3.7V 18650 battery

Works well with HuskyLens AI camera

Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.

Frosted acrylic protective plate at the bottom

Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car

Applications:

STEM Education

Specification:

Power Supply: MBT0021-EN-18650: 18650 Lithium battery (3.6V or 3.7V) x 1, onboard charging circuit, MicroUSB and TYPE-C charging interfaces, 4 hours to charge fully

Support micro:bit V1 and V2

N20 All-metal Gear Motor x 2

Motor Reduction Ratio: 1:150

Motor Rated Rotation Speed: 133 rpm

Buzzer x 1

5V IO (P0 P1 P2) x 3

3.3V IO (P0 P1 P2 P8 P9 P12 P16) x 7

3.3V I2C x 2

5V I2C x 1

Large Size LED Car Lights x 2

RGB Ambient Lights x 4

Line-tracking Sensor x 5

Line-tracking Sensor with One-key Calibration

IR Receiver x 1

SRO4 Ultrasonic Module x 1

Dimension: 136mm×65mm/5.35×2.56"

Programming Platform: Mind , MakeCode

Wiki Address:

MakeCode Library Address:

Documents:

Product Includes:

micro:Maqueen Plus V2 (18650 Battery) Vehicle body x 1
(Note: the motor, vehicle wheel, support wheel, and battery panel have been installed before delivery)

H-SR04 Ultrasonic Sensor x 1

Line-tracking Map x 1
